°åÔØIntel Celeron 6305/6305E »ò Intel Core i3-1115G4/i3-1115G4E »ò Intel Core i5-1135G7/i5-1145G7E »ò Intel Core i7-1195G7/i7-1185G7E

Intel?Tiger?Lake?UP3?SOC

2¡Á?DDR4?SODIMMÄÚ´æ²å²Û£¬×î¸ßÖ§³ÖDDR4-3200µ¥¸ù×î´ó64GB

¼¯³ÉºËÏÔIntel?UHD?Graphics?for?11th»ò?Iris?Xe?Graphics(ÒÀ²î±ðCPU)

ËÄÏÔ½Ó¿ÚHDMI+DP+eDP+LVDS£º 1 x LVDS: Dual Channel 18/24-bit, up to 1920 x 1200 1x eDP1.4 HBR3, up to 4096x2304x36bpp@60Hz£» £¨¿ÉÑ¡£ºMIPI-DSI v1.3 2.5GHz, up to 3200x2000x24bpp@60Hz£© 1 x HDMI 2.0b, up to 4Kx2Kx24bpp@60Hz 1 x DP1.4a, up to 4096x2304x36bpp@60Hz or 5120x3200x24bpp@60Hz

1¸öSATA3.0+PWR 2pin 2.0mm 1¸öM.2 2280 Key-MÖ§³ÖSATA/nVME×Ô˳Ӧ

Ö§³ÖMic-in+Line-out(µ¥¿×¶þºÏÒ»£©; Ö§³Ö´ø¹¦·ÅÊý×ÖÒôƵÊä³ö(3W, 4Pin wafer)

2¸öRJ45ÍøÂç½Ó¿Ú£¨4KVÀËÓ¿·À»¤£© LAN1: Intel i219V, LAN2: Intel i210AT/IT(¹¤Òµ¼¶¿ÉÑ¡)

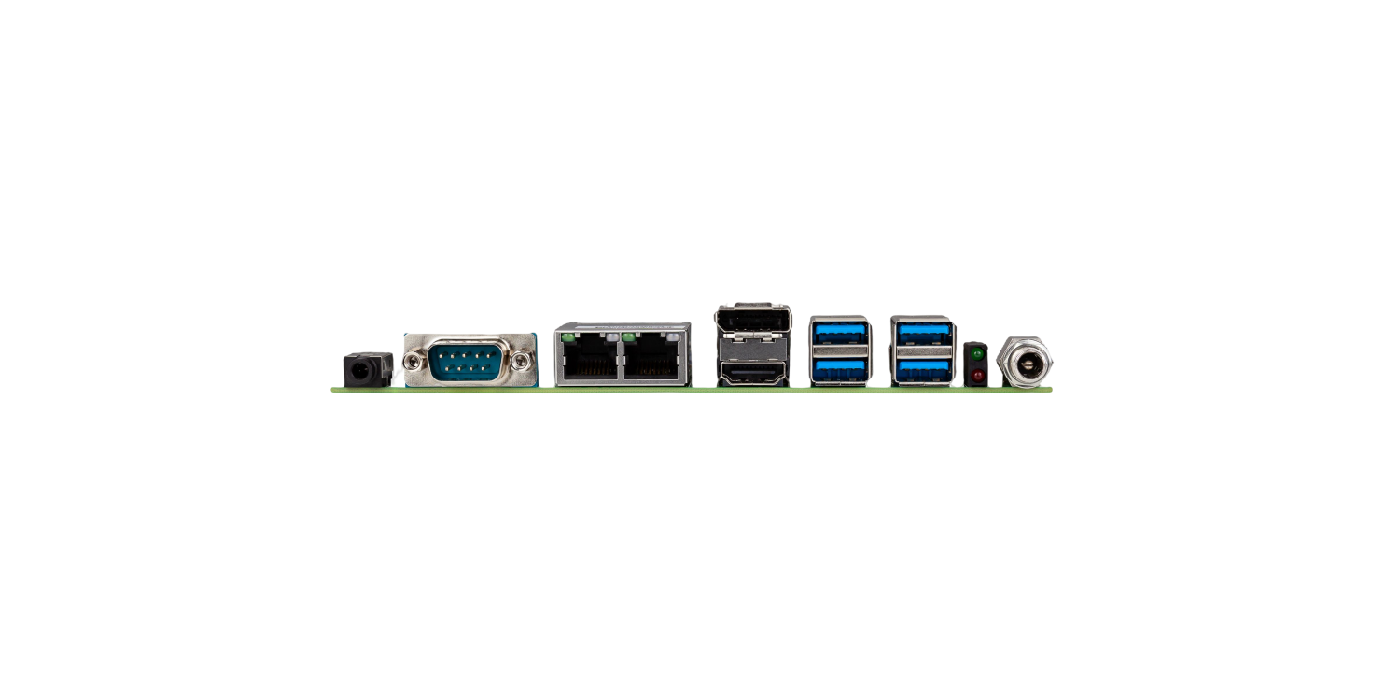

ºó°å±ß4¸öUSB3.2?Gen2x1?10GbType-A,

3?x?I2C?1Mbps,?1?x?SMBus,?4Pin?wafer½Ó¿Ú

6´®¿Ú£ºCOM1,?COM2Ö§³Ö?RS232/422/485(BIOSÉèÖÃ)?COM3~6Ö§³ÖRS232

1¸öCAN?Bus?2.0?(3Pin?wafer)

8λÊý×ÖI/O½Ó¿Ú£¨1x10Pin?wafer£©

°åÔؼÓÃÜоƬSLB9670Ö§³ÖTPM2.0

1¸öM.2 Key-B 3042/3052Ö§³Ö4G/5G (PCIe x1, USB2.0) 1¸öM.2 Key-E 2230 (PCIe x1, USB2.0)

µ±Ê¹Óó£ÎÂÄÚ´æºÍ´æ´¢Ê±£º-10¡æ¡«60¡æ£¬Ïà¶Ôʪ¶È10%¡«85%£¬´óÆøѹ85~105kPa µ±Ê¹ÓÿíÎÂÄÚ´æºÍ´æ´¢Ê±£º-40~70¡æ£¬Ïà¶Ôʪ¶È10%¡«85%£¬´óÆøѹ85~105kPa

ζÈ-40¡æ¡«85¡æ£»Ïà¶Ôʪ¶È5%¡«95%(40¡æ)£¬´óÆøѹ85~105kPa

255¼¶¿É±à³ÌÃë/·Ö£¬Ö§³Ö³¬Ê±ÖÐÖ¹»òϵͳ¸´Î»

AMI?UEFI?BIOS

Windows10£¬Windows11£¬Linux?Ubuntu?21.04

DC+12V~24V?·ÀÍÑÂÝË¿µÄDC-Jack?(BOM¿ÉÑ¡2Pin·ï»Ë¶Ë×Ó)µçԴָʾµÆ¡¢´æ´¢Ö¸Ê¾µÆ

4´ç£º168mm(W)¡Á120mm(D)
