BIOS

Èȳ±UEFI

ÄÚ´æ

2x260-pin DDR4 2666MHz SODIMM,max 64GB

²Ù×÷ϵͳ

÷è÷ë/ͳÐÅOS

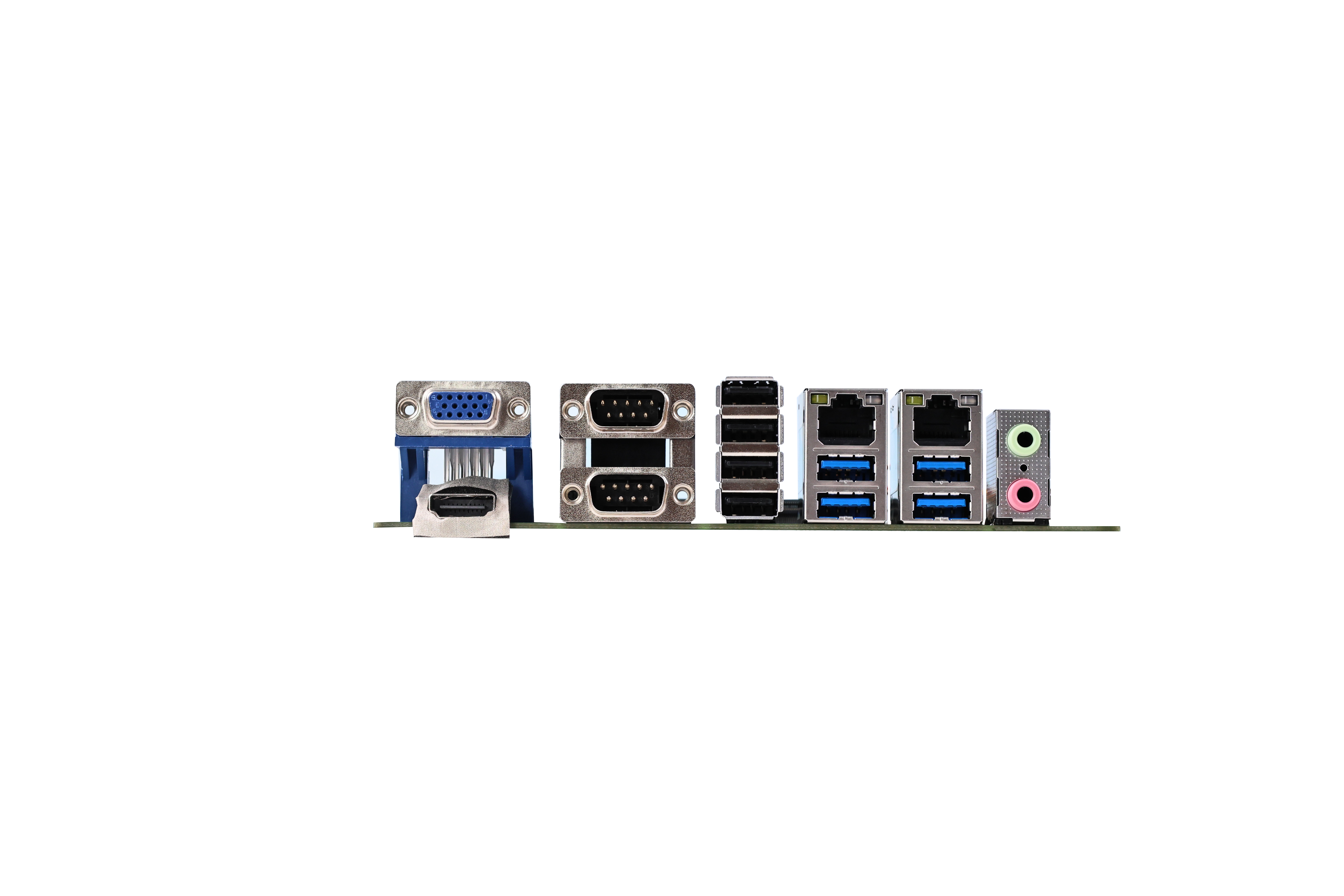

I/O ½Ó¿Ú

USB

4xUSB 3.0, 4xUSB 2.0£¬

4xUSB3.0(°åÄÚ²åÕ룩£¬2xUSB2.0(°åÄÚ²åÕ룩

COM

2xRS232/422/485, 12xRS232(°åÄÚ²åÕ룩

GPIO

2xGPIO°åÄÚ²åÕë

À©Õ¹

PCIe/M.2/Mini-PCIe

1xMini-PCIe

1xM.2 B-Key 3052,´øMicro SIM,Ö§³Ö5GÄ£¿é

1xPCIex16

ÏÔʾ

Interface

1xVGA£¬1xHDMI£¬1xLVDS

´æ´¢

SATA/M.2/mSATA

2xSATA3.0

񙮵

Audio IC

Realtek ALC897

Audio Interface

1xMic-in, 1xLine-out

ÒÔÌ«Íø

LAN IC

2xYT8531H-CA

 Interface

2xRJ45

µçÔ´

Power Input

12V

Power Interface

4PIN ATX Power

ÆäËü

Watchdog Timer

1 to 255 sec./min. per step

ÎïÀí²ÎÊý

Dimensions

170x170(mm)

ÊÂÇéÇéÐÎ

Operating Temp.

0~60¡æ

Storage Temp.

-40~85¡æ

JVC-8100

D2000

3

2

2

8

6

14

2

JVC-8100

JVC-8100Ö÷°å

1
